Hard Coating Film

Hard costing film is for the exterior and optical use and enhances the functional high hardness of product exterior and allows using diverse function films such as AS (Anti-static), AR (Anti-reflection), AG (Anti-glare), AF (anti-fingerprint) film according to the customer's needs

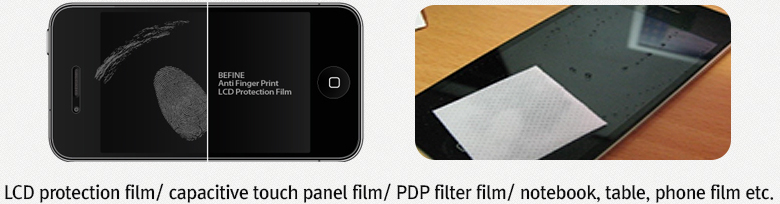

Applications

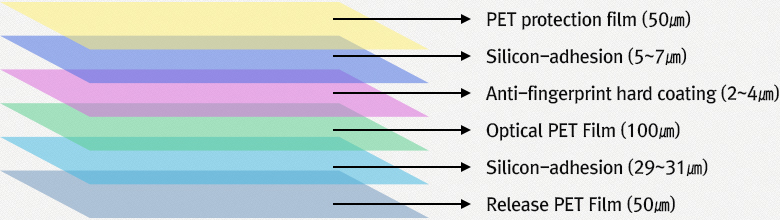

Specifications

Items		Unit	Spec.
Film	Base	㎛	PET(100)
Film	Liner	㎛	PET (both-side)
Anti-infrared hard coating			AF H/C
Width		mm	1040
Length		m	200
Haze		%	2 ↓
Light Transmissivity		%	90 ↑
Surface Hardness		H	2 ↑
Adhesive Power (Back)	SUS	Gf/Inch	2~4
Adhesive Power (Protected Surface)	SUS	Gf/Inch	1~2
