Nutrient Solution Equipment

System specification

Specification ISUU-1 Nutrient Solution Equipment
Irrigation pump 1 HP (Maximum irrigation: 18,000 liters/hour)
Nutrient solution supply Venturi method (30-300 liters/hour) EC option
Control method MyCom (automatic control by user setting)
Overall size 7cm wide x 53cm long x 106cm high
Total weight 60Kg
Power supply Single-phase 200V AC

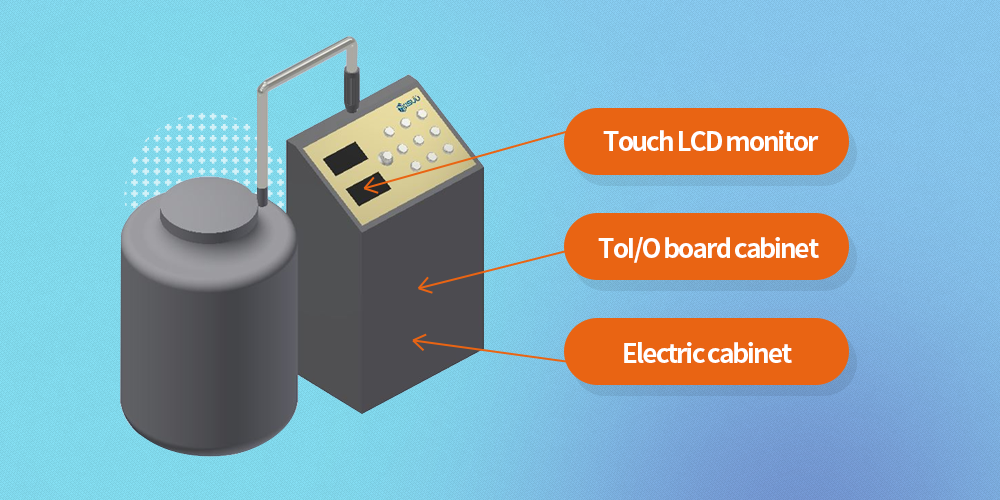

System Configuration

양방향 전력변환기

  • Changes in the capacity of the irrigation pump can be requested on demand.
  • It is subject to change without prior notice for product performance improvement.

System Features

Item Content Other
Control Method
  • Time control : irrigation method according to the set time (hour:minute) up to a total of 20 times
  • Interval control : irrigation is possible up to 99 times according to the set interval (hour:minute)
  • External control : Moisture sensor and other ON/OFF sensors can be used
  • Temperature control : Anti-frost function by setting temperature value (option)
  • Temperature control (option)
  • External sensor (option)
Irrigation method
  • Time Irrigation : Irrigation function according to the set time (minutes) for each zone
Solenoid valve
  • Control up to 10 zones
Program features
  • Anti-frost : Anti-frost function by setting temperature value (option)
  • Liquid manure control : Set and control the supply amount of liquid manure in percentage (%)
  • EC control : EC value can be set for each zone (EC option)
  • You can set whether to use nutrient solution (ON/OFF) by irrigation time
  • Stop time : When raw water is insufficient, stop time can be set after irrigation by zone
  • Irrigation report : Irrigation amount (minute) storage report for 7 days
  • Nutrient solution alarm : EC upper value alarm generation and operation stop function (EC option)
  • Output test : Irrigation pump and Nutrient solution solenoid valve test function
  • Emergency irrigation : One-touch function, simple irrigation function outside of the program
  • Temporary stop : One-touch operation stop function (operation stop in case of emergency)
  • Error message : : Outputs error messages and countermeasures when there is a system error
  • EC option
  • Anti-frost output (AC 24v)
  • Ice sheet and sprinkler must be installed separately.
Hardware features
  • Wide and bright screen with large LCD (20 width x 4 height in Korean)
  • Increased durability by using valves and fittings exclusively for chemical resistant liquid manure
  • Sturdy body with 30mm aluminum profile
  • Corrosion resistant control panel cabinet

Panel description

  • Name plate : It is strong and does not rust by using an aluminum plate.
  • Korean LCD screen width : 20 characters, length: 4 lines Built-in bright backlight
  • Numeric input key : Entering the set value in each mode
  • Left/Right : Used to move the cursor in each mode
  • Menu : Moves to various setting menu screens. Can be used on any screen
  • Emergency irrigation : irrigation performed once outside the water setting time
  • Pause : Used to stop the operation during operation. Press again to operate again
  • Enter : Exit after entering the set value in each setting mode

Controller

  • 1. Irrigation-Irrigation pump operation

    Manual
    - Irrigation pump manual operation
    Stop
    - Stop the irrigation pump
    Automatic
    - Automatic operation of irrigation pump

  • 2. Nutrient solution A solenoid valve

    Manual
    - Nutrient solution manual supply
    Stop
    - Stop supplying Nutrient solution
    Automatic
    - Nutrient solution automatic supply

Panel switch

  • 1. Irrigation-Irrigation pump operation

    Manual
    - Irrigation pump manual operation
    Stop
    - Stop the irrigation pump
    Automatic
    - Automatic operation of irrigation pump

  • 2. Nutrient solution A solenoid valve

    Manual
    - Nutrient solution manual supply
    Stop
    - Stop supplying Nutrient solution
    Automatic
    - Nutrient solution automatic supply

  • 3. Nutrient solution C solenoid valve

    Manual
    - Nutrient solution manual supply
    Stop
    - Stop supplying Nutrient solution
    Automatic
    - Nutrient solution automatic supply

  • 4. Nutrient solution B solenoid valve

    Manual
    - Nutrient solution manual supply
    Stop
    - Stop supplying Nutrient solution
    Automatic
    - Nutrient solution automatic supply
